PET/PP White Multifilament Woven Geotextile 180kN

  • 1
  • 2
  • 3

Place of Origin : China

Brand Name : HongHuan

Certification : ISO9001

Model Number : FWG600

MOQ : 10,000/m^2

Packaging Details : PP or PVC Fabric Rolls

Delivery Time : 30 days

Payment Terms : T/T, L/C

Material : Polyester/Polypropylene

Color : White

Type : Multifilament Woven Geotextile

Port : Ningbo

Unite mass : 600gsm

Packing : film

Contact Now

PET/PP White Multifilament Woven Geotextile 180kN

Description:

Multifilament Woven Geotextiles FWG® are made of individual multifilament yarns woven together into a stable fabric structure with a superior combination of mechanical and hydraulic properties. These product series has excellent resistance to biological and chemical environments normally found in soils and are stable against short-term exposure to ultraviolet radiation.


Quick detail:

Material: PET/PP
Weight: 600g/m²
Machine width: ≤5.2m
Tensile strength: 180kN/m

FWG600® Specification Date Sheet:

FWG600® Technical Specification

Property

Test Method

Metric Value

English Value

Mass Per Unit Area

ASTM D 5261

600 g/m²

17.7 oz/yd²

Tensile strength

ASTM D 4595

180 KN/m

40422 lbs

Elongation

ASTM D 4595

35%

35%

Apparent Opening Size

ASTM D 4751

0.15 mm

14 US Sieve

Permittivity

ASTM D 4491

NA

NA

Water Flow Rate

ASTM D 4491

1950 L/min/m2

48 g/min/sf

Trapezoidal Tear Strength

ASTM D 4533

2.3 KN

517 lbs

CBR Ejection Force

ASTM D 6241

20.5 KN

4604 lbs

UV Resistance
(% retained after 500 hours)

ASTM D 4355

70%

70%

ROLL DIMENSIONS

Roll Width

3.8 M

12.5 ft

Roll Length

50 M

146.5 ft

Roll Weight

114 KGS

251 lbs

NOTES:
·The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
·Mass per unit area has a tolerance of ±10%.
·The material used to produce this item is virgin polyester.


Features:

Color: White
Temperature Range: -30°C ~ +200°C
Permeability: Could control the sieve size to retain certain permeability.
Durability: Steady property, not easy to resolved,air slaked and can keep the original property long term.

Applications:

Subgrade stabilization
Area stabilization
Basal reinforcement of embankments on poor ground
Working platforms & Load transfer platforms
Reinforced soil slopes and walls

































Product Tags:

Woven Monofilament Geotextile



geotextile drainage fabric


Wholesale PET/PP White Multifilament Woven Geotextile 180kN from china suppliers

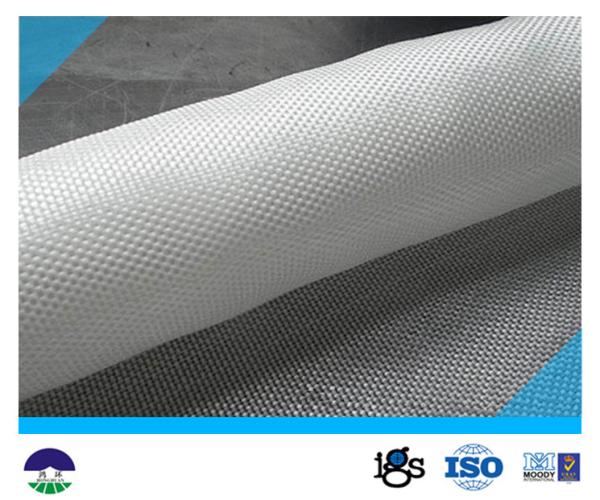

PET/PP White Multifilament Woven Geotextile 180kN Images
